The FC4500 Series are intermediate-format, professional flatbed cutting plotters capable of processing a wide variety of materials with accuracy — compliant to most industry requirements for pattern making. The series includes two table top models, the FC4500-50 and the FC4510-60. An optional stand (shown) is available for the FC4510-60.

With a maximum cutting force of 600g, this flatbed series is the most economical solution for cutting thick, hard materials that cannot be fed through a roll-feed/friction-feed cutting plotter.

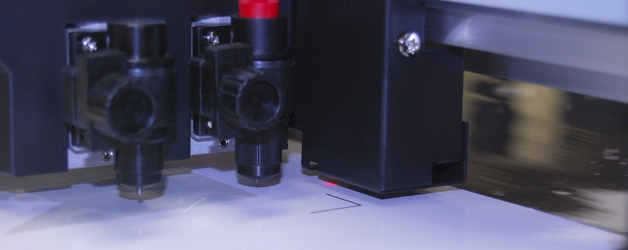

With Graphtec’s ARMS (Advanced Registration Mark Sensing System), contour cutting and creasing around pre-printed rigid cardstock and other media is a simple workflow.

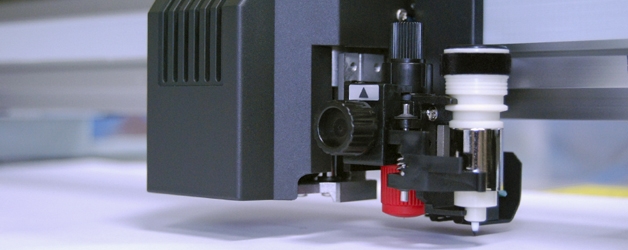

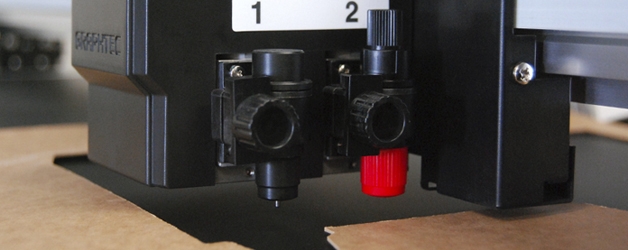

Both models are equipped with two Tool Holders for cutting, creasing and plotting. For graphic design and packaging mockups, the FC4510-60 has the dual Tool Holder which can hold a cutting blade and creasing tool — to produce creases/folds and cuts on the same run.

With their capability to hold both a cutting blade and a plotting pen simultaneously, the FC4500 Series allows garment and shoe pattern designers to mark and cut the material without manually replacing the marking and cutting tools.

Tech Specs

FC4500-50 FC4500-60
Max. media width 19.6” (500 mm) Y-axis direction 26.2” (666 mm) Y-axis direction
Max. cutting area 23.2” x 19.9” (590 x 430 mm) 33.8” x 23.6” (860 x 600 mm)
Max. cutting speed 30”/s (750 mm/s) in 23 steps
Max. cutting thickness Electrostatic Adhesion and Adhesive Sheet Adhesive Mat and Adhesive Sheet
Interface USB 2.0 High-speed / Serial RS-232C
Equipment dimensions 33.7” x 30.7” x 7.9”
(856 x 780 x 200 mm)
46.1” x 37.9” x 7.9”
(1170 x 962 x 200 mm)
Package weight 42 lb (19 kg) 60 lb (27 kg)
