Graphtec FC2250 Series Flatbed Cutting Plotter

Overview

The FC2250 Large Format flatbed cutting plotter is available in 3 table sizes: 24” x 36”, 47.2”x 36” and 68.5” x 36”, with optional tool head configurations and material hold-down systems. Dual Head Design features 500 grams and 1000 grams maximum down force for more efficient marking and cutting workflows.

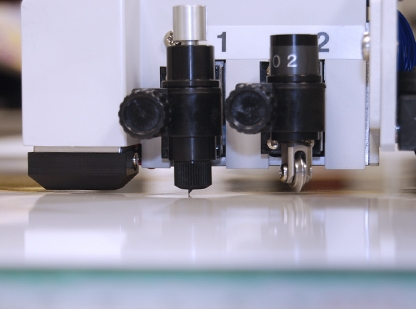

  • Dual Head Design: 500/1000 grams Cutting Force
  • 2 Media Hold down methods available: Electrostatic or Vacuum
  • Operate in Horizontal or Inclined Model
  • D-Cut Software imports DXF Datax
  • Cutting Master Plug-in for Adobe. Illustrator
  • 0.118” (3mm) Blade for cutting thicker material up to E Flute
  • New Optional Creasing Tool for Corrugated Media



Download Datasheet (Download PDF)

The FC2250 series is the most competitive in its class for electronic flatbed cutting with Adobe Illustrator for packaging design prototyping, fashion footwear industry, as well as road, highway and traffic sign making, stone & glass sandblasting/etching, electronic film industry, plus many other industries requiring in-house on-demand flatbed cutting!

  • Garment Pattern Cutting & Marking
  • Shoe Pattern Cutting & Marking
  • Package Design Prototyping
  • Monument & Stone Sandblast Mask
  • Industrial Films for Electronics
  • Reflective Highway and Road Signs
  • Offset Printing Blanket cutting
  • Architectural Model Building

Tech Specs


FC2250-60VC FC2250-120VC | FC2250-120ES FC2250-180VC
Max. media width 39.8” (1010 mm) Y-axis direction
Max. cutting width 24” x 36” (610 x 920 mm) 47.2” x 36” (1,200 x 920 mm) 68.5” x 36” (1,740 x 920 mm)
Max. cutting speed 16”/s (400 mm/s)
Min. character size approx. 10 mm square (varies with the character font and media)
Media hold-down method VC=Vaccum Suction or ES=Electrostatic Adhesion
Interface USB 2.0 High-speed / Serial RS-232C
Equipment dimensions
(with stand)		 36.2” x 50.6” x 33.7”
(919 x 1285 x 856 mm)		 61.7” x 50.6” x 37.2”
(1567 x 1285 x 945 mm)		 81.4” x 50.6” x 37.2”
(2067 x 1285 x 945 mm)
Package weight 128 lb (58 kg) 152 lb (69 kg)
with stand		 163 lb (74 kg)
with stand
