Graphtec CE6000 Series Cutter Plotter

Overview

The CE6000 are Graphtec’s professional class of cutter plotter series, and updates the extremely successful CE5000 series with improved features. The CE6000 series is also cleaner, “greener” with an electronic design and manufacturing process that minimizes the environmental impact of the hardware equipment throughout its entire life cycle.

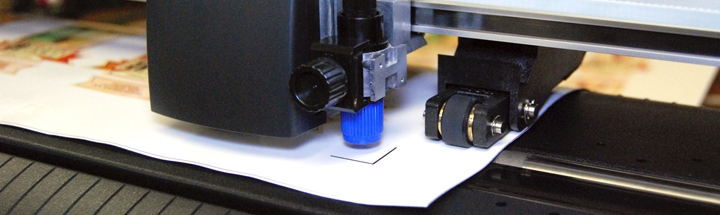

  • Includes Graphtec ARMS (Advanced Registration Mark Sensor)
  • Contour Cut Pre-Printed Graphics
  • Up to 300 & 450* grams of force
  • Tangential Emulation
  • 1 Table top, desktop Size (15″)
  • 2 Included Stand Sizes (24″ and 48″)
(*) Up to 450 grams of down force for CE6000-120 only


Download Datasheet (Download PDF)

Each CE6000 comes standard with: floor stands (60 and 120), rear media roll rack with new media brake (60 and 120 models), Graphtec Studio software, Cutting Master Plug-in, plus Graphtec’s ARMS(Automatic Registration Mark Sensor) system. Professional, reliable servo motors are made for production and accuracy!



Tech Specs


CE6000-40 CE6000-60 CE6000-120
Max. media width 19″ (484 mm) 28″ (712 mm) 53″ (1,346 mm)
Max. cutting area 14.76” x 164 ft (375 mm x 50 m) 23.7” x 164ft (603 mm x 50 m) 47.8” x 164ft (1213 mm x 50 m)
Max. cutting speed 24”/s (600 mm/s) 35”/s (900 mm/s) 40”/s (1,000 mm/s)
Max. cutting thickness 10 mil (0.25 mm)
Driver Digital DC • Servo motor

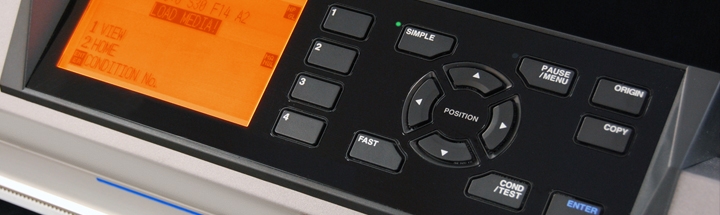

Display High resolution LCD
Interface Interface USB 2.0 Full Speed / Serial RS-232C
Equipment dimensions 26.5” x 13.3” x 10.5“
(672 x 338 x 266 mm)		 35.4” x 23.3” x 41.2”
(900 x 593 x 1,046 mm)
includes stand		 60.7” x 29” x 49.2”
(1,541 x 736 x 1,250 mm)
Includes stand
Package weight 27 lb (12.3 kg) 66lb (30 kg)
with stand		 99lb (45 kg)
with stand
